ABB Hartmann & Braun

Product Overview:

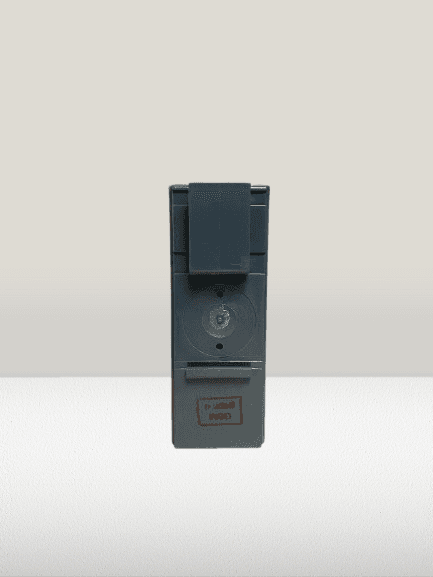

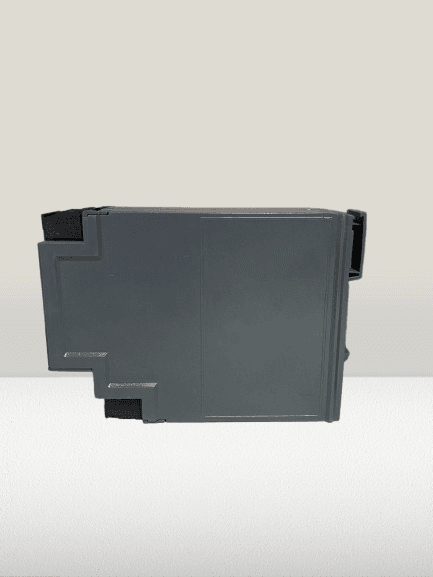

The CONTRANS E V40 is a transducer for alternating voltage designed for precise voltage measurement and signal conversion in industrial applications. It ensures high accuracy (±0.5% error limit) and reliable performance in challenging environments.

Technical Specifications:

• Model: V40
• Input Voltage: 0…120V AC, 50Hz
• Output Signal: 0…20 mA DC
• Power Consumption: ≤2.1…2.3 VA
• Overload Capacity:
  • Continuous: 1.5 × UN
  • Short-term: 4 × UN for 1 second
• Load Impedance:
  • Current Output: R = 15 V/I
  • Voltage Output: R = 100 kΩ
• Current Limit: max. 1.8 × I
• Voltage Limit: ≤30V
• Response Time: ~0.2s
• Error Limit: ±0.5%
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +80°C
• Mounting Options:
  • Surface Mounting Case: DIN Rail 35 × 15 mm or 35 × 7.5 mm
  • 19” Plug-in Card
• Protection Rating:
  • Surface-Mounting Case: IP20
  • 19” Plug-in Card: IP00
• Certifications & Compliance: IEC 1010-1, CE Certified
