Product Overview:

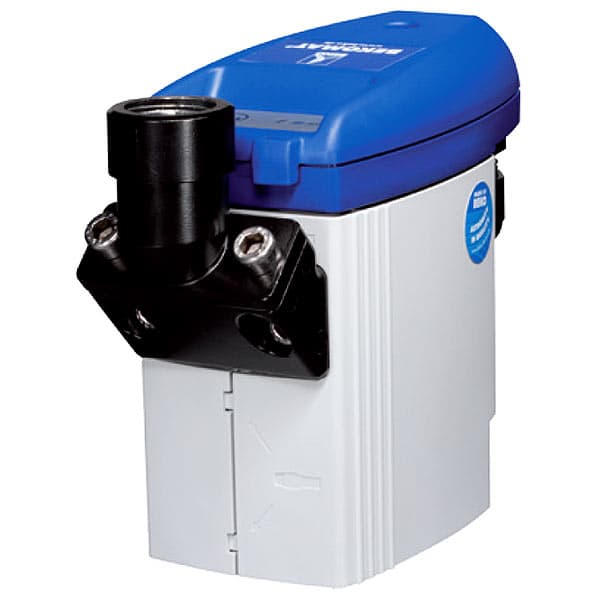

The BEKO BEKOMAT 32 is an electronically controlled condensate drain designed for compressed air systems. It ensures efficient and reliable removal of condensate without any compressed air loss, thanks to its level-controlled discharge mechanism. The unit is suitable for both oil-lubricated and oil-free compressors and is designed for quick and cost-effective servicing.

---

Technical Specifications:

• Operating Pressure: 12 to 232 psig (0.8 to 16 bar)

• Voltage: 230V AC, 50–60Hz

• Power Consumption: <8 VA

• Protection Class: IP54

• Operating Temperature: +34°F to +140°F (+1°C to +60°C)

• Connections:

  • Condensate Inlet: 1/2" NPT

  • Condensate Outlet: 1/4" NPT

• Flow Capacity:

  • Compressor Capacity: Up to 225 SCFM

  • Dryer Capacity: Up to 450 SCFM

  • Filter Capacity: Up to 2250 SCFM

• Material: Aluminum housing suitable for oil and oil-free condensate operations

• Weight: Approximately 2.2 lbs (1 kg)​
