Product Overview:

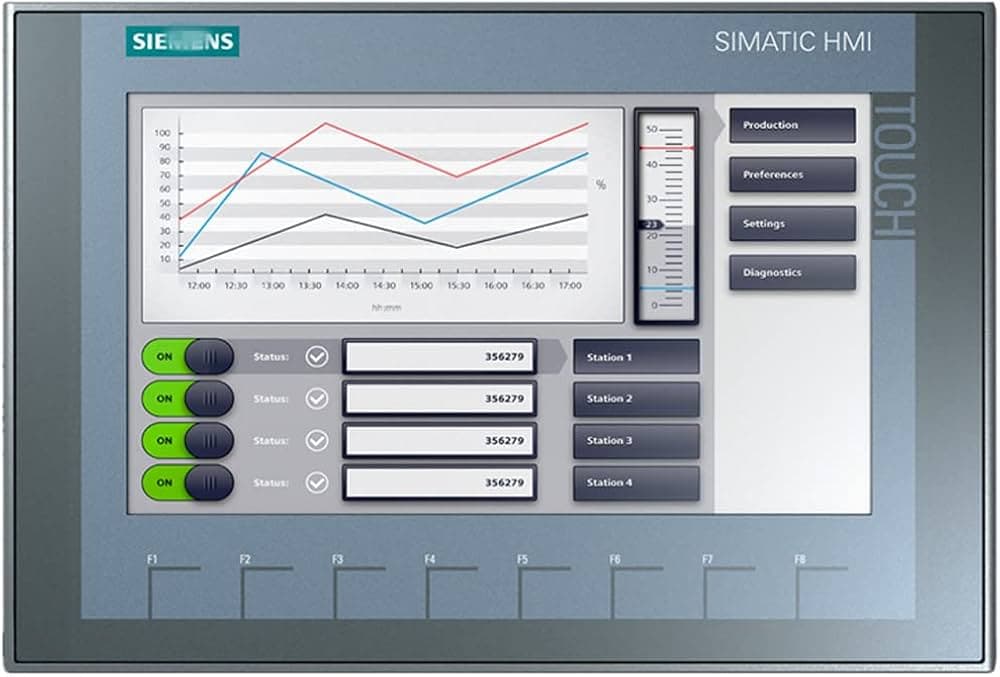

The Siemens SIMATIC HMI KTP900 Basic Panel is a 9-inch touchscreen interface designed for efficient operation and monitoring of machines and systems. It combines both touch and key operation, offering flexibility in various industrial environments. This panel is part of Siemens' Basic Panels 2nd Generation, providing essential HMI functionality with PROFINET connectivity.

---

Technical Specifications:

• Display:

  • Type: TFT widescreen with LED backlighting

  • Size: 9 inches (diagonal)

  • Resolution: 800 x 480 pixels

  • Colors: 65,536

  • Dimensions: 198 mm (width) x 111.7 mm (height)​

• Operation:

  • Touchscreen and keypad

  • 8 function keys

• Interfaces:

  • PROFINET

  • 1 x Ethernet (RJ45)

  • 1 x USB 2.0​

• Configuration Software:

  • Compatible with WinCC Basic V13 / STEP 7 Basic V13

• Power Supply:

  • 24 V DC​

• Operating Temperature:

  • 0°C to +50°C

• Mounting:

  • Panel mounting​

• Protection Class:

  • Front: IP65

  • Rear: IP20​
